doom-emacs as an ssh IDE with TRAMP using eglot and language servers.

Background

For most of my emacs configuration1, there normally isn’t very much to write about which isn’t immediately evident from my configuration site. However, since my shift to a MacBook, I have needed to fine tune my existing lsp-mode default setup for TRAMP and this post will cover a little bit of that. Though most of the post is about doom-emacs, it is also applicable to vanilla emacs after porting the snippets over to use-package instead.

There are two primary methods of interfacing emacs to language servers, eglot and lsp-mode. Not for me to do a full comparison, but some thoughts of the top of my head were:

eglot
Feels more minimal, maintained by the author of yassnippet
lsp-mode
Much more configuration, better documentation in some aspects, strangely difficult TRAMP setup

Note that the comparisons stated are neither fair nor particularly useful. I just need something to work quickly with my main programming languages at the moment. I went with eglot.

Desiderata

The things I really need, which both provide are:

  • Easily look up doc-strings
  • Auto-completion
  • Renaming symbols
  • Figuring out common mistakes
  • Indexing and lookup for symbol definitions and usage

Eglot

Getting started with eglot was surprisingly pleasant, for doom ships a pretty out-of the box configuration anyway.

;; init.el
(lsp +eglot) ;; Activate eglot
(python +lsp) ;; Python with pyls by default
(cc +lsp) ;; C++ with clangd by default

Usage was pretty sweet (after getting clang-tools for clangd), it can be activated by running eglot in any supported buffer, and it came with all the standard bells and whistles.

For working with tramp too, after Emacs 27.1, in most cases it just works, one simply needs to supply the location of the language server executable and we’re off to the races. In-fact, even adding the full path to the binary to PATH is good enough for eglot.

Caveats

  • No projectile support planned (though there are workarounds)
    • Uses project.el to pick root directories (i.e. .git)
      • In particular this means it works poorly with git sub-modules

Overall the main issue with eglot seems to be the insistence to be accepted into emacs core someday. This is great, and a good direction for the project to grow in, but it constrains my workflow unnecessarily. I’m more interested in working with doom-emacs than vanilla emacs and so am pretty invested in non-core libraries like projectile 2.

Language Servers

For getting the language server providers themselves, we will mostly leverage direct binaries where possible, but also, depending on the implementation, virtual environments3. Essentially we have the following Rosetta stone.

Table 1: Language servers and installation methods
LanguageServerInstallationManagement
C++clangdManual (binary)None
PythonpylsppipMicromamba
Bashbash-language-servernpmNVM
Rlanguageserverinstall.packagesN/A
TeXdigestiffManual (wrapper)None
Nixrnix-lspNixN/A
Fortranfortran-language-serverpipMicromamba

So we need to setup the following, assuming an existing conda helper (micromamba as described here) setup.

# Get Micromamba
mkdir -p ~/.local/bin
export PATH=$HOME/.local/bin:$PATH
wget -qO- https://micromamba.snakepit.net/api/micromamba/linux-64/latest | tar -xvj bin/micromamba
mv bin/micromamba ~/.local/bin
rm -rf bin
micromamba shell init -s bash -p $HOME/.micromamba
. ~/.bashrc

Now we can use it.

micromamba create -n lsp
micromamba activate lsp
micromamba install python==3.9 pip -c conda-forge

Note that for this to work out well, we need to activate this environment by default, with something like micromamba activate lsp added to your .bashrc. In fact, it is best to also add the full path, since eglot doesn’t seem to pick it up after micromamba activate.

export PATH=$HOME/.micromamba/envs/lsp/bin/:$PATH

Also, we need to setup nvm.

wget -qO- https://raw.githubusercontent.com/nvm-sh/nvm/v0.38.0/install.sh | bash
. $HOME/.bashrc
nvm install node
nvm use node

C++

For clangd (details here) and tramp this amounted to:

mkdir -p ~/.local/lsp
cd ~/.local/lsp
wget https://github.com/clangd/clangd/releases/download/12.0.0/clangd-linux-12.0.0.zip
unzip clangd-linux-12.0.0.zip
mv clangd-linux-12.0.0/* .

In combination with the standard doom-emacs cc module, this is a very good workflow, with the only issue being the ability to set the project root and files to be considered. There is doom-emacs version of appending and setting the language server used, which will be used here:

(after! eglot
  :config
  (set-eglot-client! 'cc-mode '("clangd" "-j=3" "--clang-tidy"))
  )

Note that the best way to make a language server behave is to have a compilation database, which can be generated (for a CMake project) as follows:

# From src
mkdir build
cd build
# cmake -DCMAKE_EXPORT_COMPILE_COMMANDS=1 .. -G 'Unix Makefiles' # default on *nix
cmake -DCMAKE_EXPORT_COMPILE_COMMANDS=1 .. -G 'Ninja' # way faster
ninja # or make
cp compile_commands.json ..

This will ensure the best experience, since the compile_commands.json (described here) file contains paths to all the files used, including system and write-only files 4. The setup here works well with enough with the ccls language server as well, which in turn is a more maintained fork of cquery.

Python

Palantir’s python-language-server is EOL, and was weird to begin with, but the Spyder team has taken up the gauntlet and maintains the python-lsp-server (repo).

micromamba activate lsp # should be done in the ~/.bashrc
micromamba install python-lsp-server[all] -c conda-forge

For working with this in an optimal manner the eglot readme suggests using .dir-local.el files. For example:

((python-mode
  . ((eglot-workspace-configuration
      . ((:pylsp . (:plugins (:jedi_completion (:include_params t)))))))))

It so happens that this method is flexible enough to allow multi-configuration of servers as well. Additionally, we have options for working with the setup:

(after! eglot
  :config
  (set-eglot-client! 'python-mode '("pylsp"))
  (set-eglot-client! 'cc-mode '("clangd" "-j=3" "--clang-tidy"))
)

Or in vanilla emacs:

(add-to-list 'eglot-server-programs
             '(python-mode "pylsp"))

Bash

This is fairly straightforward, and implemented in js here.

nvm use node
npm i -g bash-language-server

Along with:

(sh +lsp) ;; in the init.el file

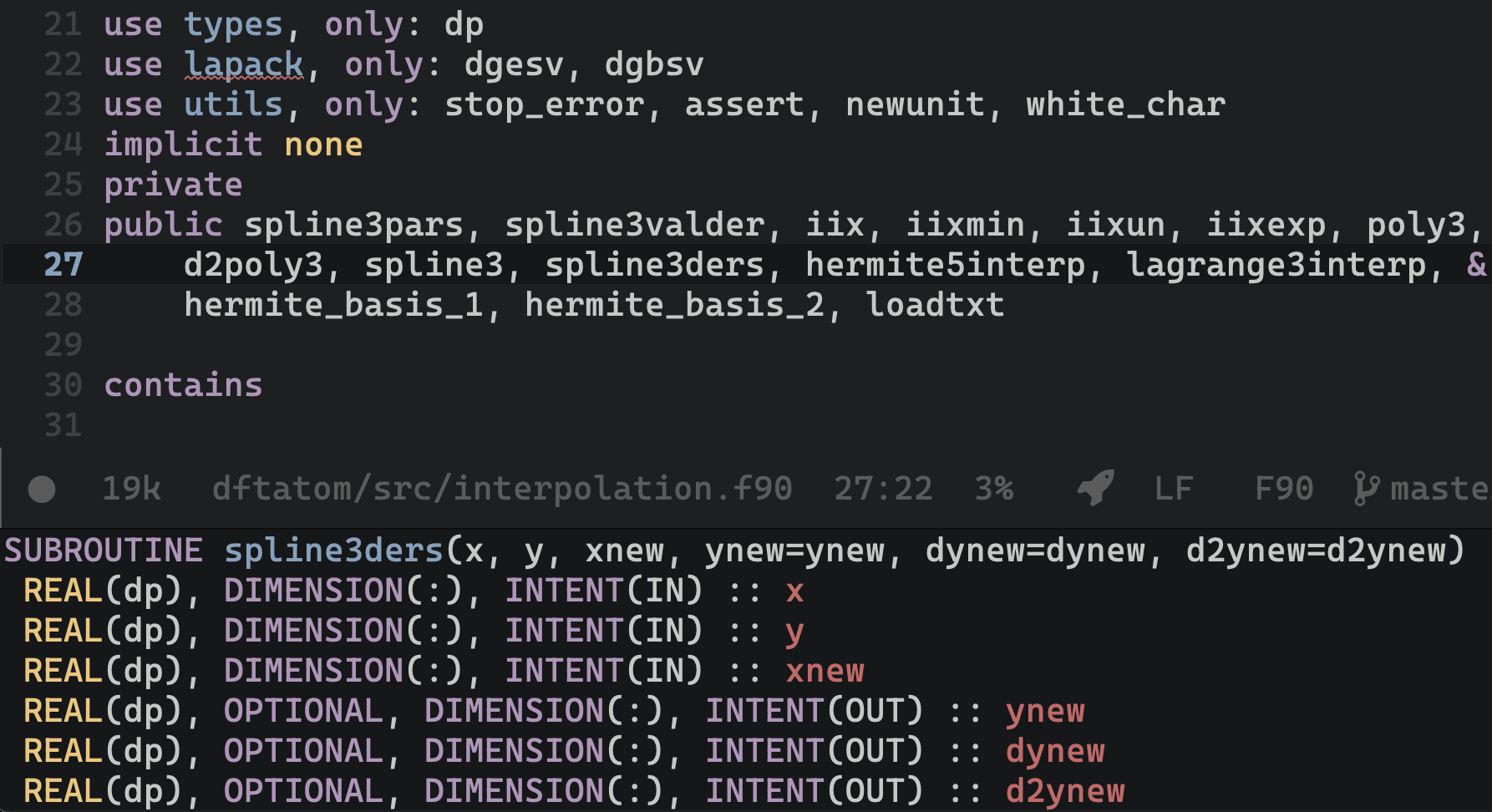

Fortran

The installation of fortls (repo) is simple enough.

micromamba activate lsp
pip install fortran-language-server

Unfortunately, doom-emacs does not actually support the fortran language server out of the box, so some additional emacs-lisp needs to go into the configuration.

(add-hook 'f90-mode-hook 'eglot-ensure)

This works quite well for larger projects.

Nix

rnix-lsp (repo) has no non nix installation, and a slightly uncertain future, but it is still fantastic and shouldn’t be left out5.

nix-env -i -f https://github.com/nix-community/rnix-lsp/archive/master.tar.gz
nix-env -i nixkpgs-fmt

As this is another unsupported server in doom-emacs, the setup needs some tweaking.

(add-hook 'nix-mode-hook 'eglot-ensure)

TeX

The last of the language servers, digestif (repo) is implemented in lua, and probably shouldn’t be on a remote machine6, but nevertheless.

mkdir -p ~/.local/lsp/bin
cd ~/.local/lsp/bin
wget https://raw.githubusercontent.com/astoff/digestif/master/scripts/digestif
chmod +x digestif
./digestif

This sets up $HOME/.digestif/bin which is yet another path to be managed. Note that this assumes a standard TexLive installation with luatex.

Local Usage

For local use, assuming similar installation instructions, it is easier to manipulate exec-path.

(after! eglot
  :config
  (add-hook 'nix-mode-hook 'eglot-ensure)
  (add-hook 'f90-mode-hook 'eglot-ensure)
  (set-eglot-client! 'cc-mode '("clangd" "-j=3" "--clang-tidy"))
  (set-eglot-client! 'python-mode '("pylsp"))
  (when (string= (system-name) "blah")
  (setq exec-path (append exec-path '(
                                      (concat (getenv "HOME") "/.micromamba/envs/lsp/bin/") ;; python, fortran
                                      (concat (getenv "HOME") "/.local/lsp/bin/") ;; clangd
                                      (concat (getenv "HOME") "/.digestif/bin/") ;; tex
                                      (concat (getenv "HOME") "/.nvm/versions/node/v16.1.0/bin/bash-language-server")
                                      )))
    )
  )

Where you will need to replace "blah" with the output of (system-name).

Conclusions

Embarrassingly, neither setup provided as pleasant an SSH based workflow as VS Code. However, that probably has a lot more to do with TRAMP than any of the language servers, and in any case Magit still makes emacs far superior. In any case, the setup described here is still far superior to not using anything other than projectile and ripgrep so I am satisfied for now. The path setup in this post is deliberately polluting for simplification however, and in practice my Dotfiles are managed a lot better with bombadil which is something for a later post. Each of these will take some getting used to, and new keybindings will probably be needed, especially for my idiomatic Colemak setup.


  1. More than adequately managed by hlissner’s fantastic doom-emacs ↩︎

  2. If you need more information, Doug Davis has a more in-depth vanilla emacs write-up on eglot and C++ ↩︎

  3. Though my university cluster has nix, most remote machines do not, so we don’t depend on it here ↩︎

  4. This means, libraries like Eigen or even the standard library can be looked up via eglot ↩︎

  5. The original author unfortunately passed away earlier this year ↩︎

  6. Visualizing the resultant pdf would be a chore ↩︎
