An introduction to hacking keyboard layouts with X keyboard extension (XKB) and klfc, focused on Colemak and vim bindings

Background

In-spite of maximizing ergonomic bindings for most common software (e.g. Vimium, doom-emacs), every operation with the arrow keys still trouble me. Here I will lay out my experiments transitioning to a stable, uniquely defined setup with the X keyboard extension.

Keyboard Basics

Some terms to keep in mind for this post are1:

Dead Keys
These don’t actually output anything, but modify the next key pressed. Like applying an umlaut on the subsequent letter.
Lock Keys
State modifiers which are toggled, like Caps Lock
Compose Key
A key which interprets a series of subsequent key strokes. A dead key on steroids.

Also the different levels (from here) are concisely defined in the following table.

Table 1: Levels for a keyboard
LevelModifierKeys
1NoneLowercase letters, numbers other symbols
2ShiftUppercase letters, symbols placed above numbers
3AltGrAccented characters, symbols, some dead keys
4Shift+AltGrMore dead keys and symbols
5ExtendUser-defined
6Shift+ExtendUser-defined

Modification Strategies

Common approaches to quick remapping of keys involves xmodmap, which does not persist between reboots. Manually recreating or spinning off of XKB configuration files was also not very appealing.

KLFC

A more elegant approach is by using the excellent klfc Haskell binary. To install this from source:

1git clone https://github.com/39aldo39/klfc
2cd klfc
3# Kanged from the AUR https://aur.archlinux.org/packages/klfc/
4cabal v1-update
5cabal v1-install --only-dependencies --ghc-options=-dynamic --force-reinstalls
6cabal v1-configure --prefix=/usr --ghc-options=-dynamic
7cabal v1-build

The output binary is in ./dist/build/klfc/klfc.

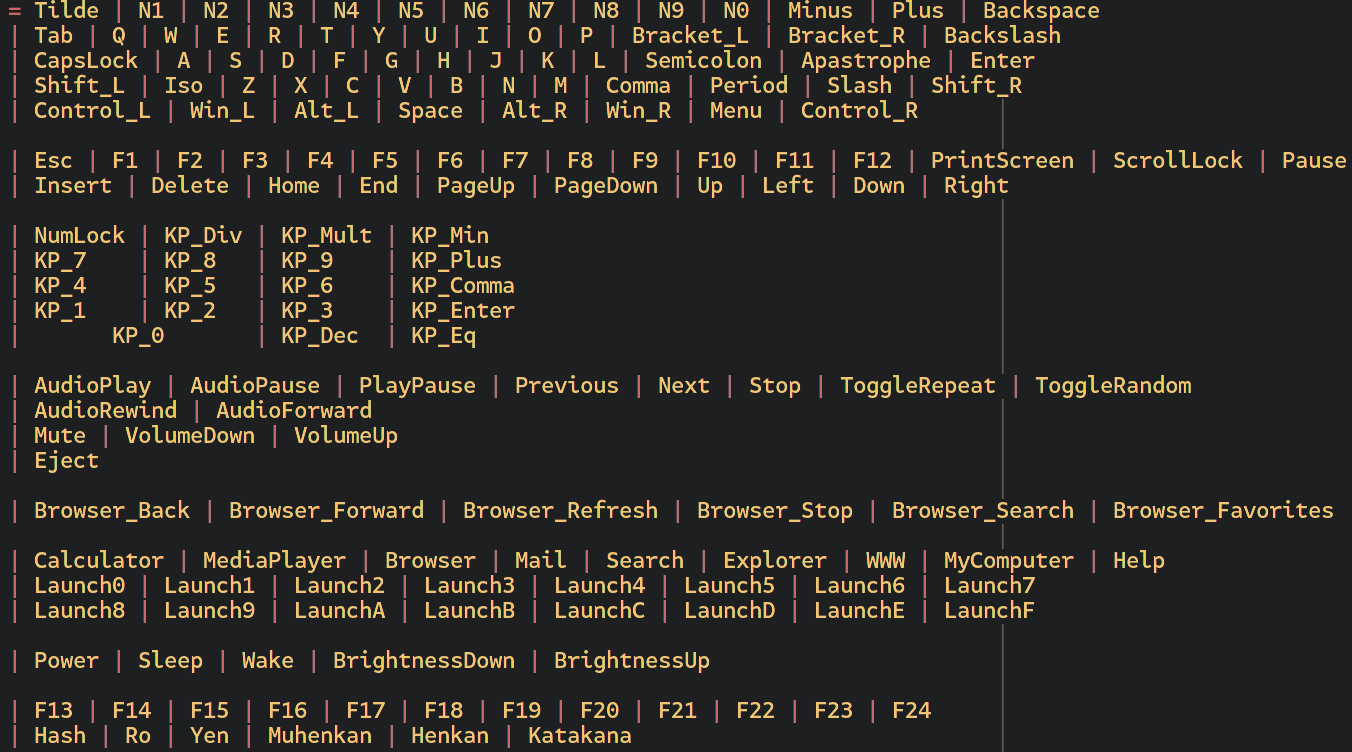

Note that the set of keys mapped by the json files are relative to the QWERTY layout, that is:

This means that we have to ensure that the keys are mapped relative to QWERTY as well, not relative to the modified base layout.

Remapping

Some goals were:

  • Programming (particularly in python and lisp) put a lot of stress on the right hand pinky for Colemak users2
  • VIM keys should be global but toggled with a lock

My primary use case is currently my ThinkPad X380, which comes with a basic QWERTY contracted layout as shown in Fig. 1.

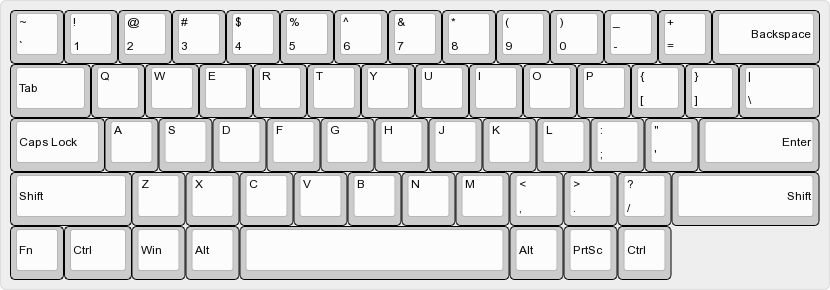

Figure 1: Basic X380 QWERTY

Figure 1: Basic X380 QWERTY

Colemak - Layers 1 and 2

The first mapping is a basic Colemak setup as shown in Fig. fig:colemak.

Figure 2: Basic X380 Colemak

Figure 2: Basic X380 Colemak

It wouldn’t make much sense to remap the first two layers. We can use the json from the examples of the klfc repository.

 1// Base Colemak layout
 2// https://colemak.com
 3{
 4  "fullName": "Colemak",
 5  "name": "colemak",
 6  "localeId": "00000409",
 7  "copyright": "Public Domain",
 8  "company": "2006-01-01 Shai Coleman",
 9  "version": "1.0",
10  "shiftlevels": [ "None", "Shift" ],
11  "singletonKeys": [
12    [ "CapsLock", "Backspace" ]
13  ],
14  "keys": [
15    { "pos": "~", "letters": [ "`", "~" ] },
16    { "pos": "1", "letters": [ "1", "!" ] },
17    { "pos": "2", "letters": [ "2", "@" ] },
18    { "pos": "3", "letters": [ "3", "#" ] },
19    { "pos": "4", "letters": [ "4", "$" ] },
20    { "pos": "5", "letters": [ "5", "%" ] },
21    { "pos": "6", "letters": [ "6", "^" ] },
22    { "pos": "7", "letters": [ "7", "&" ] },
23    { "pos": "8", "letters": [ "8", "*" ] },
24    { "pos": "9", "letters": [ "9", "(" ] },
25    { "pos": "0", "letters": [ "0", ")" ] },
26    { "pos": "-", "letters": [ "-", "_" ] },
27    { "pos": "+", "letters": [ "=", "+" ] },
28    { "pos": "Q", "letters": [ "q", "Q" ] },
29    { "pos": "W", "letters": [ "w", "W" ] },
30    { "pos": "E", "letters": [ "f", "F" ] },
31    { "pos": "R", "letters": [ "p", "P" ] },
32    { "pos": "T", "letters": [ "g", "G" ] },
33    { "pos": "Y", "letters": [ "j", "J" ] },
34    { "pos": "U", "letters": [ "l", "L" ] },
35    { "pos": "I", "letters": [ "u", "U" ] },
36    { "pos": "O", "letters": [ "y", "Y" ] },
37    { "pos": "P", "letters": [ ";", ":" ] },
38    { "pos": "[", "letters": [ "[", "{" ] },
39    { "pos": "]", "letters": [ "]", "}" ] },
40    { "pos": "\\", "letters": [ "\\", "|" ] },
41    { "pos": "A", "letters": [ "a", "A" ] },
42    { "pos": "S", "letters": [ "r", "R" ] },
43    { "pos": "D", "letters": [ "s", "S" ] },
44    { "pos": "F", "letters": [ "t", "T" ] },
45    { "pos": "G", "letters": [ "d", "D" ] },
46    { "pos": "H", "letters": [ "h", "H" ] },
47    { "pos": "J", "letters": [ "n", "N" ] },
48    { "pos": "K", "letters": [ "e", "E" ] },
49    { "pos": "L", "letters": [ "i", "I" ] },
50    { "pos": ";", "letters": [ "o", "O" ] },
51    { "pos": "'", "letters": [ "'", "\"" ] },
52    { "pos": "Z", "letters": [ "z", "Z" ] },
53    { "pos": "X", "letters": [ "x", "X" ] },
54    { "pos": "C", "letters": [ "c", "C" ] },
55    { "pos": "V", "letters": [ "v", "V" ] },
56    { "pos": "B", "letters": [ "b", "B" ] },
57    { "pos": "N", "letters": [ "k", "K" ] },
58    { "pos": "M", "letters": [ "m", "M" ] },
59    { "pos": ",", "letters": [ ",", "<" ] },
60    { "pos": ".", "letters": [ ".", ">" ] },
61    { "pos": "/", "letters": [ "/", "?" ] }
62  ],
63  "variants": [
64    {
65      "name": "mod-dh",
66      "shiftlevels": [ "None", "Shift" ],
67      "keys": [
68        { "pos": "V", "letters": [ "d", "D" ] },
69        { "pos": "B", "letters": [ "v", "V" ] },
70        { "pos": "G", "letters": [ "g", "G" ] },
71        { "pos": "T", "letters": [ "b", "B" ] },
72        { "pos": "H", "letters": [ "k", "K" ] },
73        { "pos": "N", "letters": [ "m", "M" ] },
74        { "pos": "M", "letters": [ "h", "H" ] }
75      ]
76    }
77  ]
78}

VIM Extensions

The additions are primarily through the Extend Layer3 (Fig. 3), with a Shift addition (Fig. 4) and more keys with AltGr (Fig. 5). As mentioned before, we have to continue mapping relative to QWERTY, so these mappings can be used by QWERTY users as well. We will essentially use the ISO_5 shift key.

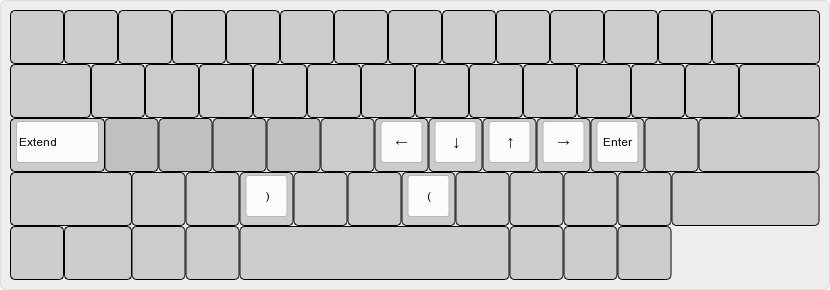

Figure 3: Extend layer mapping

Figure 3: Extend layer mapping

  • Maps basic vim movement

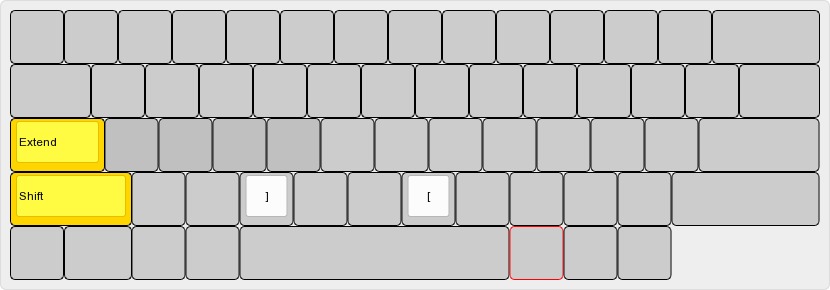

Figure 4: Extend+Shift layer mapping

Figure 4: Extend+Shift layer mapping

  • Relatively empty, just has a bracket

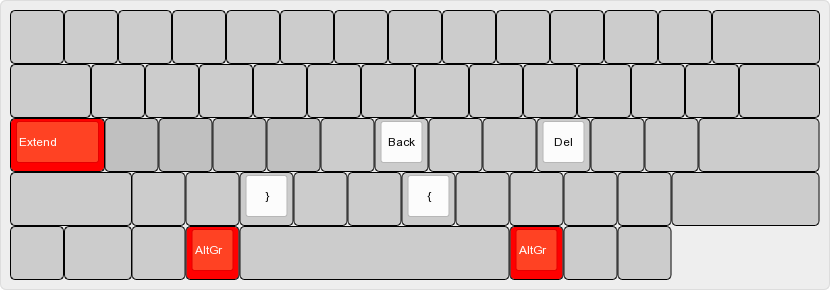

Figure 5: Extend+AltGr layer mapping

Figure 5: Extend+AltGr layer mapping

  • Includes deletions

These are defined in a single json as shown.

 1{
 2  "filter": "no klc,keylayout",
 3  "singletonKeys": [
 4    [ "CapsLock", "Extend" ],
 5    [ "Alt_L", "AltGr" ]
 6  ],
 7  "shiftlevels": [ "Extend", "Shift+Extend", "AltGr+Extend" ],
 8  "keys": [
 9    { "pos": "H", "letters": [ "Left", "", "Backspace" ] },
10    { "pos": "J", "letters": [ "Down" ] },
11    { "pos": "K", "letters": [ "Up" ] },
12    { "pos": "L", "letters": [ "Right", "", "Delete" ] },
13    { "pos": ";", "letters": [ "Enter" ] },
14    { "pos": "N", "letters": [ "(", "[", "{" ] },
15    { "pos": "V", "letters": [ ")", "]" , "}"] }
16  ]
17}
  • The key idea is to have the AltGr keys placed symmetrically
  • One major issue is that Backspace has gone from a single stroke of CapsLock to a three-key-combo
    • This is the least intuitive, and might need to be changed
  • The third level (Extend+AltGr) is more accessible than the second in this layout

Usage

To generate the files needed to load the new layout:

1klfc colemak.json extendVIM.json -o coleVIM
2cd coleVIM/xkb
3./run-session.sh    # to try them out
4./install-system.sh && ./scripts/install-xcompose.sh # to install them

Conclusions

The layout takes a bit of time to get used to, but it is a lot more transparent in the end compared to manually remapping to Colemak’s NEIO instead of HJKL for movement. It is both persistent and easily extended, though it is likely that more needs to be done. Perhaps some metrics 4 might be collected as well.


  1. For more details the Wikipedia article on Keyboard Layouts is useful or this file on the tmk keyboard ↩︎

  2. Colemak, unlike Dvorak, prioritises finger rolls over alternating hands ↩︎

  3. DreymaR’s Extend mappings might be good for QWERTY people ↩︎

  4. The metric collection of Michael White or the CARPALX metrics ↩︎
