Windows Compatibility and Scientific Computing

Notes on cross-platform portability for scientific codes with legacy components.

Background

Most computational chemistry codes are developed on Linux. macOS shows up in CI matrices or in workshops, a conda-forge feedstock might cover the major platforms, but Windows tends to be tested last and debugged reluctantly ¹. This is simply a consequence of the platforms available in most research groups and the priorities of the people writing the code ².

I have been maintaining eOn ³ for a while now, through a GPR-dimer implementation (Goswami et al. 2025), an on-the-go variant (Goswami and Jónsson 2025), the NEB-MMF work (Goswami, Gunde, and Jónsson 2026), my thesis (Goswami 2025), and more recently the metatensor ecosystem integration (Bigi et al. 2026) ⁴ and an atomistic cookbook recipe for NEB with machine learning potentials. Along the way, and through contributions to chemfiles and asv, I have collected a tidy set of Windows-specific failure modes. Each has cost at least one CI cycle and occasionally an afternoon.

Reserved Filenames

Windows inherits from DOS a set of reserved device names that cannot be used as filenames, regardless of extension: CON, PRN, AUX, NUL, COM1 through COM9, LPT1 through LPT9. Case-insensitive, naturally. The Microsoft documentation is comprehensive, but in practice most people discover these constraints from a CI failure rather than from reading the docs.

aux.py in asv_runner (2023)

When writing asv_runner, the runner component for the asv benchmarking tool, I had a perfectly reasonable file called asv_runner/aux.py for auxiliary benchmark configuration ⁵. On Linux, no problem. On Windows:

1ERROR: For req: asv-runner. The wheel has a file 'asv_runner/aux.py'
2trying to install outside the target directory

The wheel could not even be installed, let alone the repository cloned ⁶. Since asv is used by NumPy, SciPy, and friends for performance tracking, this surfaced quickly. The fix was to rename the file. The same issue appeared in pypotlib shortly after, because apparently one lesson is never enough.

CON.cpp in chemfiles (2026)

Three years later, while adding .con file support to chemfiles, I named the implementation files CON.hpp and CON.cpp after the format they implement ⁷. CON is of course also a reserved device name.

The files were renamed to _CON.hpp and _CON.cpp. The list of reserved names is short enough to memorize, but apparently long enough to forget between projects. The divergence in kernel handling is shown in Figure 1.

Stack Sizes and Legacy Fortran

The default stack size on Linux is typically 8 MB (ulimit -s). On Windows, it is 1 MB. This is rarely a problem for modern C++ since Eigen::MatrixXd and friends allocate on the heap, but it matters enormously for legacy Fortran, where local arrays live on the stack by default.

The GAGAFE Subroutine

The eOn code includes Embedded Atom Model potentials implemented in Fortran 77. The core routine is called GAGAFE, and I rather enjoy knowing where the name comes from ⁸:

GAGAFE stands for ‘group of atoms, group of atoms, force and energy’. In a system with two types of atoms, A and B, GAGAFE needed to be called three times, once for the A-A interactions, then for the B-B interactions and finally for the A-B interactions. This is coming from the code written in the H. C. Andersen group at Stanford (starting around 1980 when he wrote his famous paper on the velocity Verlet algorithm and the isobaric simulations with the extended Lagrangian). The code ran on a PDP-11 computer in combination with an array processor. I was a post-doc in the group 1986-1988 and kept this basic structure in the F77 code I wrote when I moved to Seattle in 1988.

– Hannes Jónsson (private communication)

There is something appealing about a subroutine name with a provenance older than most of its users. The code has been running continuously for over four decades, and it still works.. except on Windows, where the local arrays blow the stack.

The subroutine declares arrays dimensioned with compile-time constants:

1c parameters.cmn
2      parameter (MAXPRS = 200000)
3
4c gagafeDblexp.f
5      DIMENSION phi(MAXPRS), phivirst(MAXPRS)
6      DIMENSION RA1(MAXCOO), RA2(MAXCOO), FA1(MAXCOO), FA2(MAXCOO)

phi and phivirst alone consume around 3 MB. Including the remaining arrays, the total stack footprint is roughly around 3.6 MB which is well beyond the 1 MB Windows default. The client crashes on entry to the potential routine with exit code 3221225725 (decimal), which is 0xC00000FD: STATUS_STACK_OVERFLOW (see Figure 2).

The Fix

For Meson-based builds, the linker can request a larger stack:

1if is_windows
2    if is_mingw
3        _linkargs += ['-Wl,--stack,16777216']  # 16 MB
4    elif cppc.get_id() == 'msvc'
5        _linkargs += ['/STACK:16777216']
6    endif
7endif

The alternative is refactoring the Fortran to use ALLOCATABLE arrays or COMMON blocks. For code with this kind of lineage, the linker flag is less invasive. More on working with inherited Fortran in general can be found in an earlier post.

Stdout Redirection and spdlog

The spdlog logging library provides stdout_color_sink_mt, which uses ANSI escape codes on Linux and WriteConsole on Windows for colored output. The catch: WriteConsole only works when the output handle is an actual console ⁹. When a parent process redirects stdout to a file as the eOn Python server does for every client job, WriteConsole fails silently.

The symptom is that the client produces no stdout whatsoever. stderr is empty. The exit code may or may not be informative depending on what else breaks downstream. The fix is to select the non-color sink:

1#ifdef _WIN32
2  auto console_sink =
3      std::make_shared<spdlog::sinks::stdout_sink_mt>();
4#else
5  auto console_sink =
6      std::make_shared<spdlog::sinks::stdout_color_sink_mt>();
7#endif

This took longer to diagnose than it should have, mostly because “no output” does not immediately suggest “color codes”, a mechanism detailed in Figure 3.

This has been fixed in recent versions of spdlog, and was likely simply masking errors from the gagafe issue.

The MinGW/MSVC ABI Boundary

On conda-forge, Fortran libraries are built with MinGW (m2w64) because there is no MSVC Fortran compiler. The entire grimme-lab stack (xtb, tblite, dftd4, mctc-lib) uses MinGW consistently, so internally there is no mismatch. The problem appears when a C++ project built with MSVC needs to link against one of these libraries.

This surfaced while enabling Windows builds for the eOn v2.10.0 conda-forge feedstock. eOn links against libxtb for the tight-binding potential, and against libtorch and libmetatensor for machine learning potentials. The latter two come from the MSVC ecosystem. There is no world in which everything uses the same compiler ¹⁰.

The Import Library Problem

MinGW produces libxtb.dll.a (a GNU-style import library). MSVC’s linker does not understand this format; it expects xtb.lib. The xtb conda package does not ship one because it has no reason to ¹¹.

The workaround is to generate an MSVC-compatible import library from the DLL exports:

1dumpbin /EXPORTS "%LIBRARY_BIN%\libxtb-6.dll" > xtb_exports.txt
2echo LIBRARY libxtb-6.dll > xtb.def
3echo EXPORTS >> xtb.def
4for /f "skip=19 tokens=4" %%A in (xtb_exports.txt) do (
5    if not "%%A"=="" echo     %%A >> xtb.def
6)
7lib /DEF:xtb.def /OUT:"%LIBRARY_LIB%\xtb.lib" /MACHINE:X64

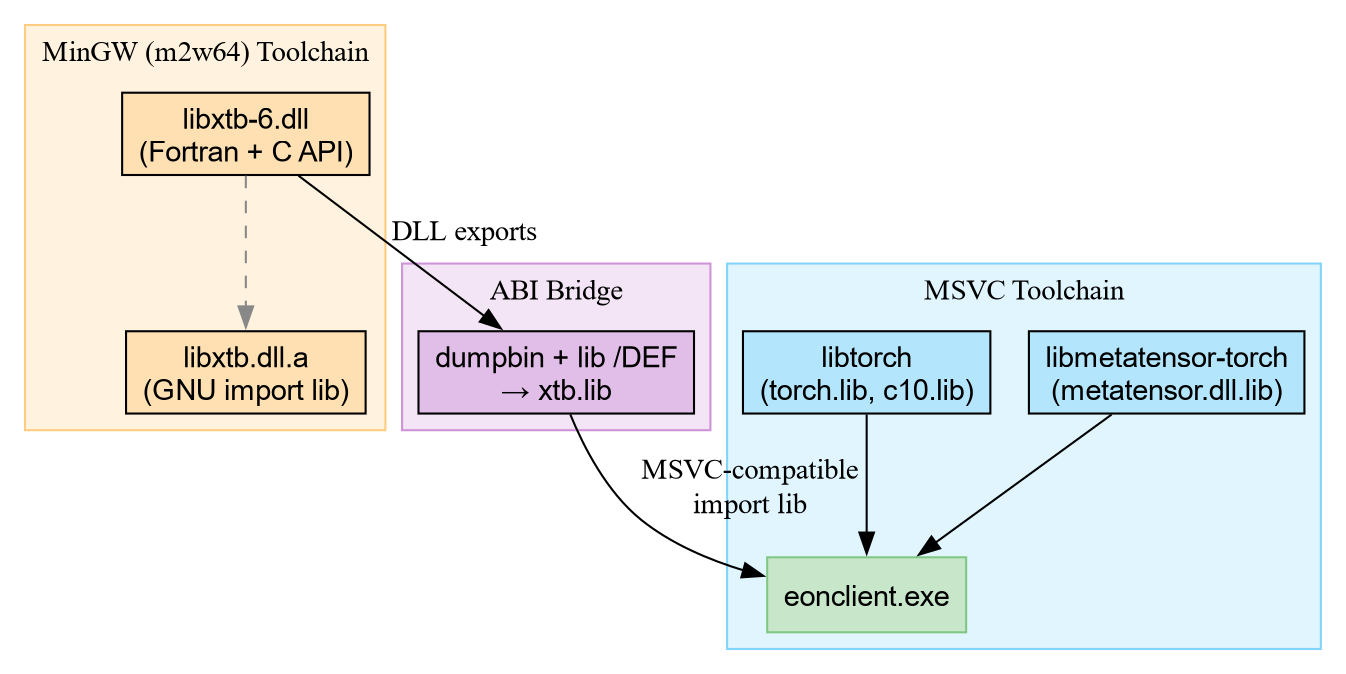

This works because xtb exposes a pure C API (xtb.h), and the C ABI is compatible between MinGW and MSVC. C++ name mangling would be fatal here, but xtb ¹² provide a C interface. The dependency chain is illustrated in Figure 4.

find_library and Missing Import Libraries

A related pattern appears in the libtorch integration from the same feedstock PR. The meson build finds torch libraries with find_library, which defaults to required: true:

1lib_torch_list = ['c10', 'torch', 'torch_cpu', 'torch_global_deps']
2tdeps = []
3foreach lib_name : lib_torch_list
4    tdeps += cppc.find_library(lib_name, dirs: [LIB_TORCH_LIB_PATH])
5endforeach

On Windows, torch_global_deps ships as a DLL with no corresponding .lib import library. It exists solely to set up runtime library search paths for CUDA and has no exported symbols needed at link time. The equivalent CMake build handles this gracefully:

1foreach(lib c10 torch torch_cpu torch_global_deps)
2  find_library(${lib}_LIB ${lib} PATHS ${LIB_TORCH_LIB_PATH} NO_DEFAULT_PATH)
3  if(${lib}_LIB)
4    target_link_libraries(eonclib PUBLIC ${${lib}_LIB})
5  endif()
6endforeach()

The CMake version silently skips missing libraries. The meson version treats every entry as mandatory. The fix is to add required: false and check .found(), which is the meson equivalent of the CMake pattern ¹³.

Concluding Remarks

None of these issues are particularly deep. The reserved filenames have been documented since DOS. The 1 MB stack has been the default for decades. The MinGW/MSVC split has been the status quo on conda-forge for as long as Fortran has been involved. The common thread is that they surface only when CI runs on a platform the developer does not use daily, with error messages ranging from cryptic (0xC00000FD) to absent (WriteConsole) to quietly fatal linker errors.

The practical advice is simple: add Windows to the CI matrix early, pay extra attention to legacy Fortran components where stack allocation is the default, and do not assume that “requires library X” implies “requires the toolchain that built library X”. And perhaps keep a list of DOS device names somewhere visible.
